stripper-cutter DL-703

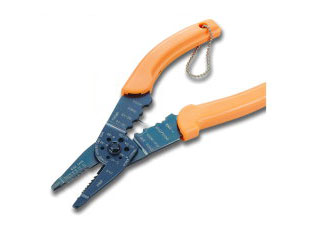

DL-703 All Functions CrimpingTool

DL-703
with spring-loaded for easy operation

SPECIFICATION
Item : DL-703
Length : 8-5/8" (219±3mm)
Weight : 0.22 KGS
with spring-loaded for easy operation

Applicable AWG/mm Sizes

AWG 22 20 18 16 14 12 10
mm 0.6 0.8 1.0 1.3 1.6 2.0 2.6
  1. Clamper
  2. Stripper
  3. For cutting cu, al soft wire
  4. For cutting bolt 4-40/5-40/6-32/8-32/10-32/10-24
  5. For crimping non-insulated terminals 10-22 awg wire.
  6. For crimping insulated terminals.
  7. For crimping ignition terminals.
  8. For crimping flag terminals.
