DL-801/802 Series Professional Crimping Tool-Ratchet Type
DL-801/802

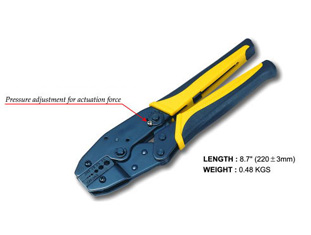

8.7" Professional ratchet type crimping tool
SPECIFICATION
8.7" Professional ratchet type crimping tool
for F, BNC, TNC, Fiber-optic connectors,
inter-locking connectors, cord end terminals,
insulated%non-insulated terminals.
Width : 8.7" (220±3mm)
Weight : 0.48KGS
| Complete Tool | Replacement | HEX Size | Description |
| DL-801A |  |
.225" .213" .068" (6.48 5.41 1.72 mm) |
RG58, 59, 62, 140, Belden 8279 |
| DL-801AC |  |
.324" .255" .213" .100" .068" (8.23 6.48 5.41 2.50 1.72 mm) |
RG58, 59, 62, 6 |
| DL-801B |  |
.319" .213" .187" (8.1 5.41 4.75 mm) |
RG58, 6, 174, 140 Fiber optic |
| DL-801C |  |
.319" .256" .213" .068" (8.1 6.5 5.41 1.72 mm) |
RG58, 59, 62, 6, Belden 8279 |
| DL-801C2 |  |
.360" .324" .262" .068" (9.14 8.23 6.65 1.72 mm) |
Catv "F" connectors RG59, 6 |
| DL-801F |  |
.350" .320" .255" (8.9 8.13 6.48 mm) |
Catv "F" conn. RG59, 6 |
| DL-801F2 |  |
.213" .178" .151" .068" .042" (5.41 4.52 3.84 1.72 1.07 mm) |
RG58, 174 Belden 8281 Fiber optic SMA, SMB connectors |
| DL-801F5 |  |
.213" .178" .128" .068" .042" .028" (5.41 4.52 3.25 1.72 1.07 0.71 mm) |
RG58, 174 Fiber optic F2 F3 F5 |
| DL-801G |  |
.255" .213" .137" .100" .068" .043" (6.48 5.41 3.5 2.54 1.72 1.10 mm) |
RG58, 59, 62, 174, 140 Fiber optic |
| DL-801J |  |
.178" .151" .128" .078" .068" .042" (4.52 3.84 3.25 2.0 1.72 1.07 mm) |
RG174, 178, 179 Fiber optic |
| DL-801K |  |
.429" .128" .100" .075" (10.9 3.25 2.54 1.9 mm) |
RG8, 9, 11, 174, 316 Belden 9913 |
| DL-801V |  |
.187" .178" .151" .137" .128" .068" .042" (4.75 4.52 3.84 3.5 3.25 1.72 1.07 mm) |
RG58, 174, SMA, SMB |
| DL-830B |  |
.324" .255" .068" (8.22 6.48 1.72 mm) |
RG59, 62, 6 Belden 8281 |
| DL-830C |  |
.255" .213" .187" .068" (6.48 5.41 4.75 1.72 mm) |
RG58, 59, 62, 142, 174, 223 |
| DL-830D |  |
.213" .187" .151" .128" (5.41 4.75 3.84 3.25 mm) |
RG58, 174, Fiber optic |
| DL-802A |  |
AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4-6 mm² |
For insulated terminal |
| DL-802H |  |
AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4-6 mm² |
For insulated terminal |
| DL-802E |  |
AWG 22/20/18/16/14/12 DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm² |
Pin terminal insulated or non-insulated ferrules |
| DL-802S |  |
AWG 10/8/6 DIN 6/10/16 mm² |
Pin terminal insulated or non-insulated ferrules |
| DL-802C |  |
AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4-6 mm² |
Inter-locking & non-insulated |
| DL-802N |  |
AWG 20-18/16-14/12-10/8 DIN 1.5/2.5/6/10 mm² |
Non-insulated terminal |
*OEM FOR DIFFERENT SIZES ARE WELCOME
