Products

Crimping Tool

crimping-tool DL-806

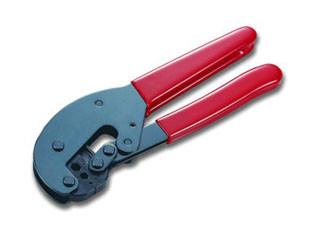

DL-806 Series Professional Coaxial Crimping Tool

DL-806 Series
Professional Coaxial Crimping Tool

SPECIFICATION

Item : DL-806 Series
Width : 8-5/8" (219±3mm)
Weight : 0.58 kgs

Unit
Complete Tool Replacement Die set DL-806 Series DL-806 Series DL-806 Series DL-806 Series Description
DL-806A DL-806-806A - .255"
6.48		 .213"
5.40		 .068"
1.72		 RG58, 59, 62
DL-806B DL-806-806B .324"
8.22		 .255"
6.48		 - .068"
1.72		 RG59, 62, 6
DL-806C DL-806-806C .324"
8.22		 - .216"
5.48		 .068"
1.72		 RG58, 6
DL-806E DL-806-806E .448"
11.4		 .322",br>8.20 .213"
5.40		 - RG58, 6, 11, 213
DL-806F DL-806-806F .476"
12.1		 .324"
8.22		 .100"
2.54		 - RG6, 11, 213
DL-806F1 DL-806-806F1 .384"
9.75		 .324"
8.22		 .100"
2.54		 .068"
1.72		 RG59, 62, 6
DL-806H DL-806-806H .359"
9.12		 .324"
8.22		 - - F-59, 62, 6
DL-806J DL-806-806J .472"
12.0		 .361"
9.18		 - - F-59, 6, 11
DL-806M DL-806-806M .475"
12.08		 .360"
9.14		 .100"
2.54		 - F-59, 6, 11
DL-806N DL-806-806N .188"
4.78		 .151"
3.84		 .133"
3.38		 .122"
3.10		 ST-SC fiber optic
DL-806R DL-806-806R .480"
12.19		 .362"
9.19		 - - F-59, 6, 11

*OEM FOR DIFFERENT SIZES ARE WELCOME
